Contemporary West Eugene Spa Bath Remodel
Project Overview
A Eugene bathroom becomes a contemporary spa-grade retreat with a freestanding vessel soaking tub, gold and satin brass fixtures, and a floor-to-ceiling marble tile vanity wall. Neil Kelly’s team navigated structural and plumbing challenges hidden behind every wall to deliver the glamorous, clean-lined space the homeowners envisioned. Large-format porcelain slab tile and ultra-high-gloss cabinetry complete the look.
The Team
-
Neil Kelly
Eugene Team
Key Facts
- Scope Level
- Replace
- Service
- Bathroom Remodeling
- Size
- 170 sq ft
- Location
- Churchill, Eugene
The Challenge
The homeowners wanted a bathroom that matched their home’s contemporary style with a distinctly glamorous edge. Neil Kelly’s Eugene team took on the project knowing the aesthetic ambitions were high and the behind-the-wall conditions would be complicated.
One shower wall was an exterior wall, requiring careful insulation work before any finishes could go in. Another shower wall backed up to laundry room plumbing, which meant coordinating new shower construction with existing utility runs. A kitchen drain from directly above the bathroom dropped into the space at a location that conflicted with the new layout. The water supply position interfered with plans for a half-wall of glass in the shower enclosure.
Below the floor, the bathroom sat below the foundation level. The bottom two feet of wall had concrete behind the drywall, which affected how cabinetry and fixtures could be mounted. A floating makeup cabinet needed structural support that standard wall framing could not provide. Each of these conditions required the design and build teams to problem-solve before the visible finishes could take shape.
The Solution
The build team addressed each structural challenge with targeted solutions. The exterior shower wall was furred out to allow proper insulation behind the storage niche. Plumbing vents at the laundry wall were moved as needed. Close coordination with the plumber allowed the kitchen drain to be rerouted away from the new layout.

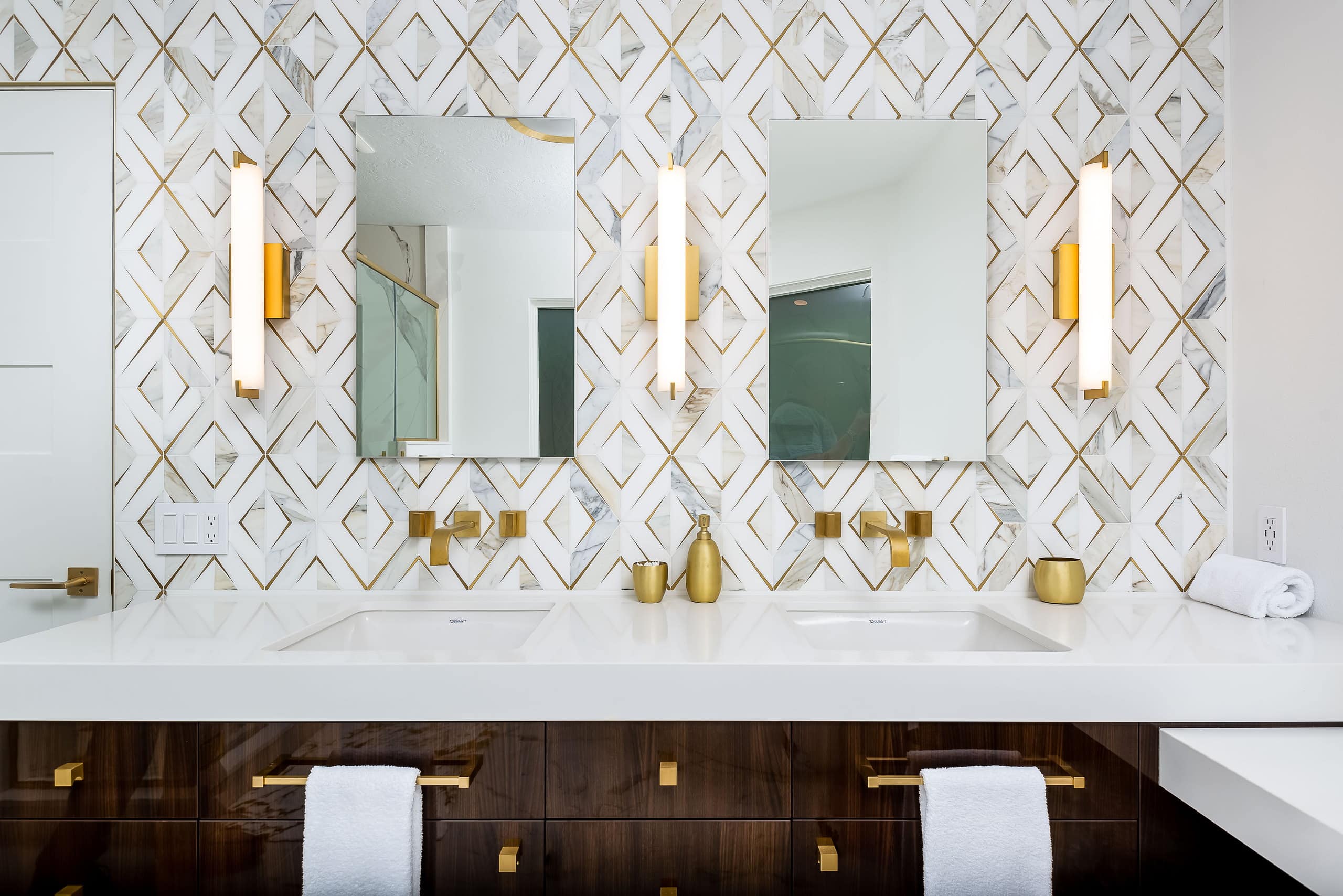

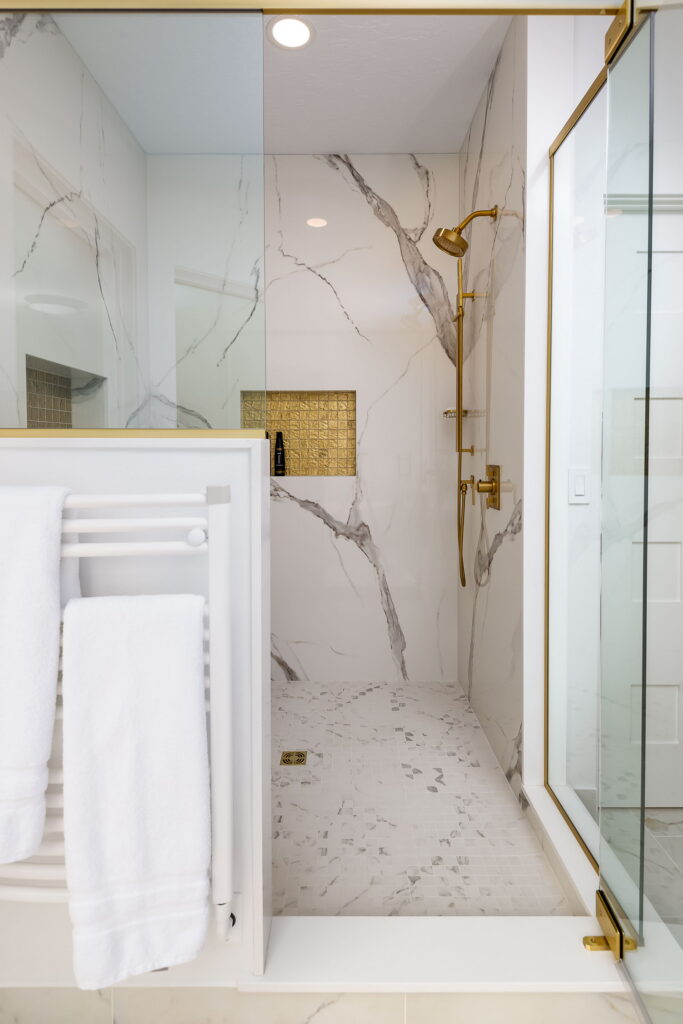

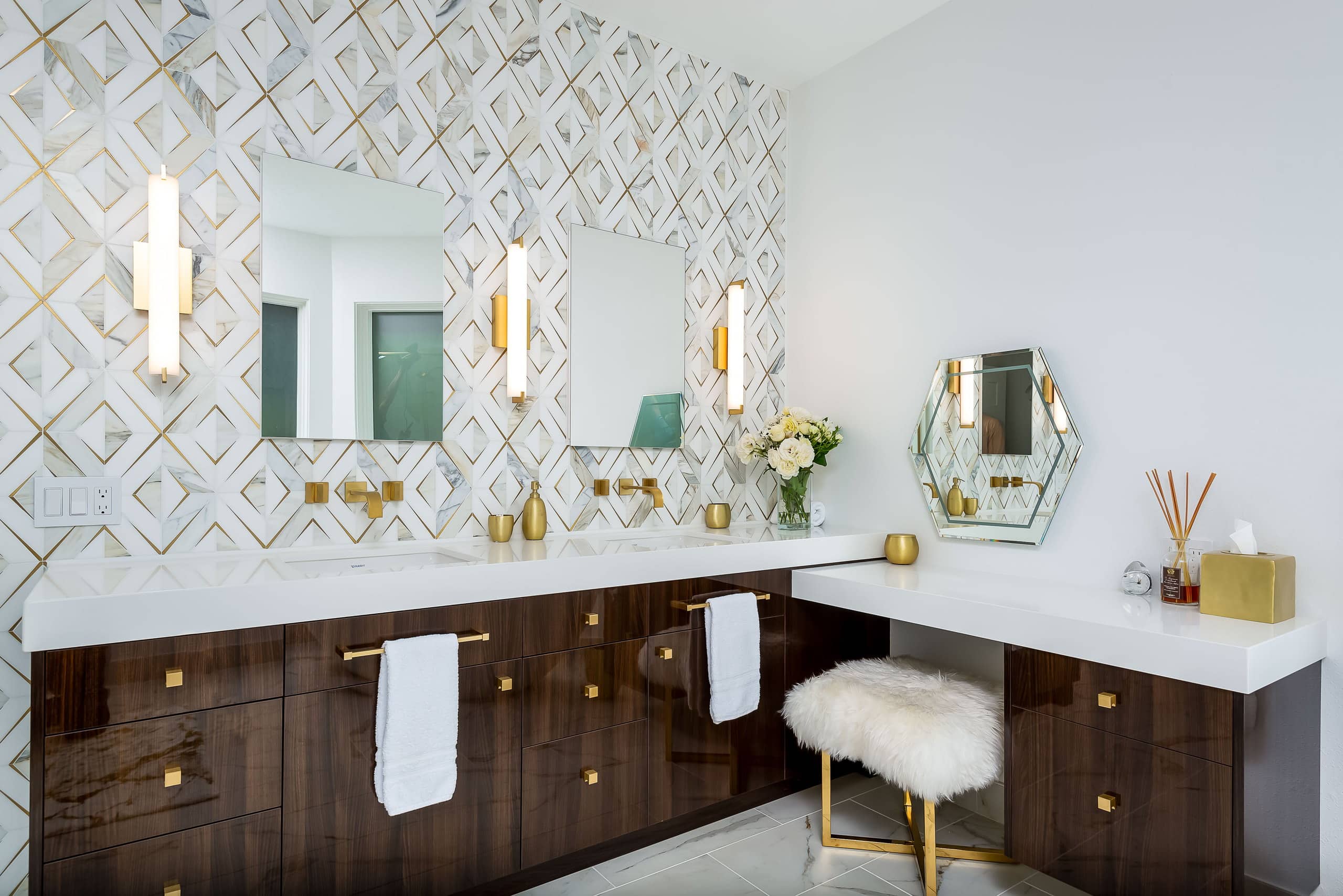

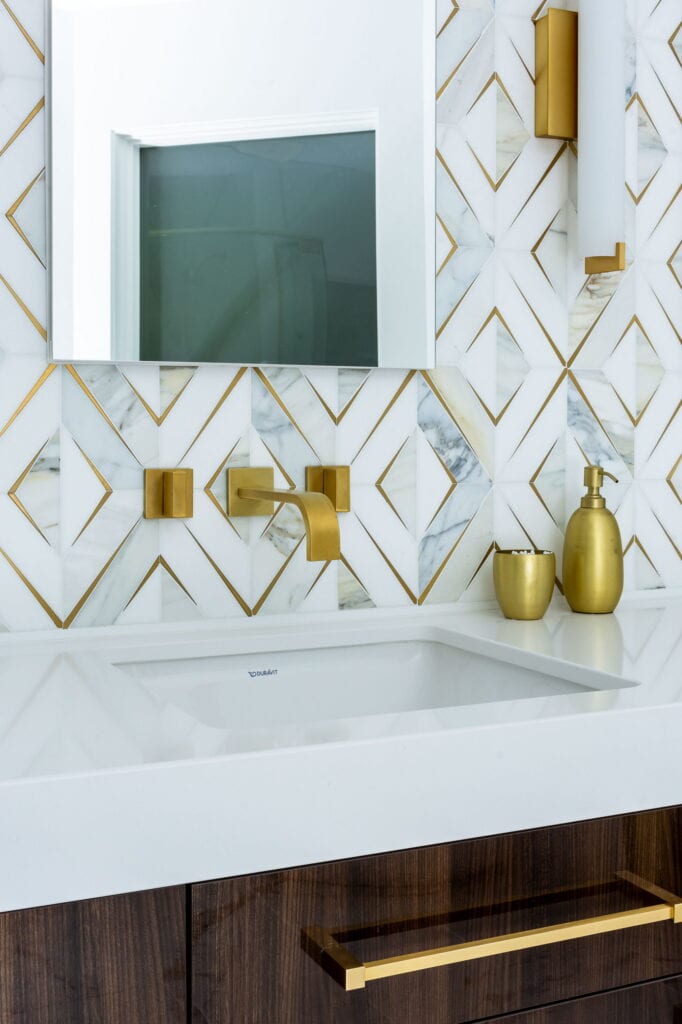

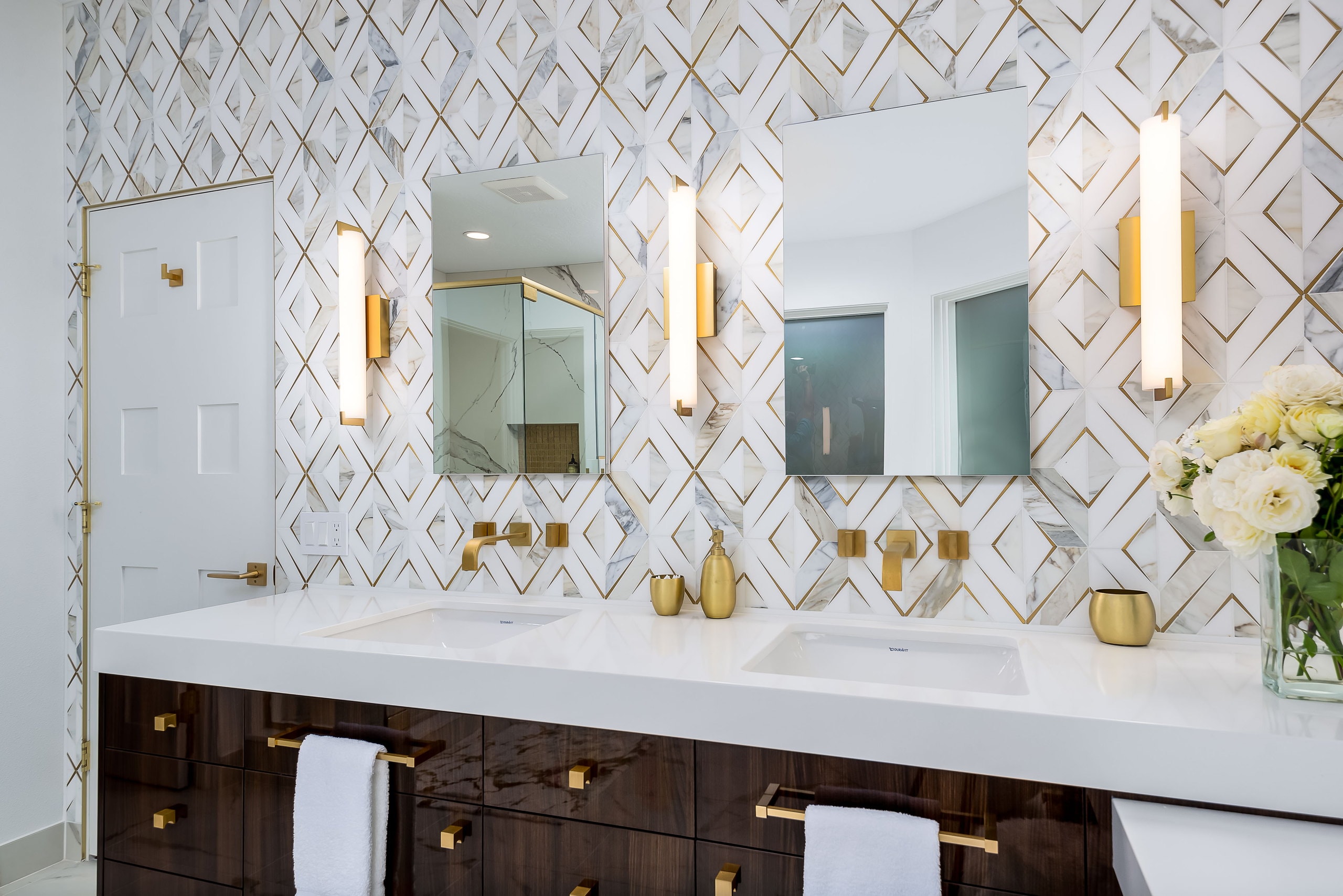

Quartz lining at the edges of the shower enclosure provided a crisp transition from the large-format porcelain slabs to the drywall walls of the bathroom. The vanity wall was meticulously planned so that plumbing, lighting, medicine cabinets, and base cabinets aligned precisely with the marble tile pattern. Faucets sit centered within diamond-shaped tiles. Tile edging at the bottom, sides, and top of the feature wall minimized material waste during installation.

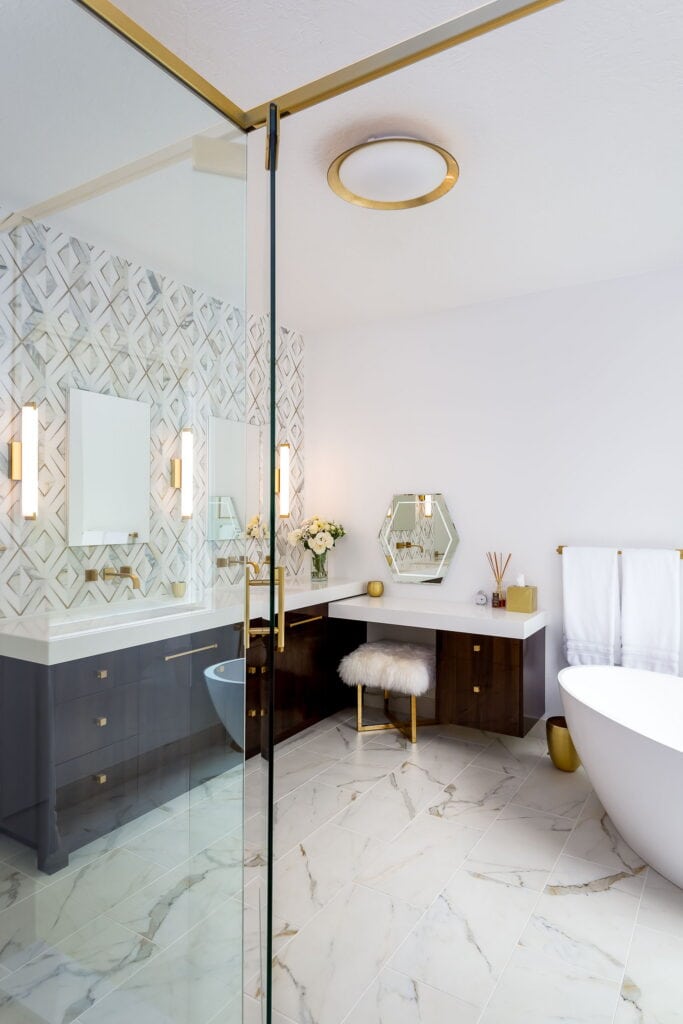

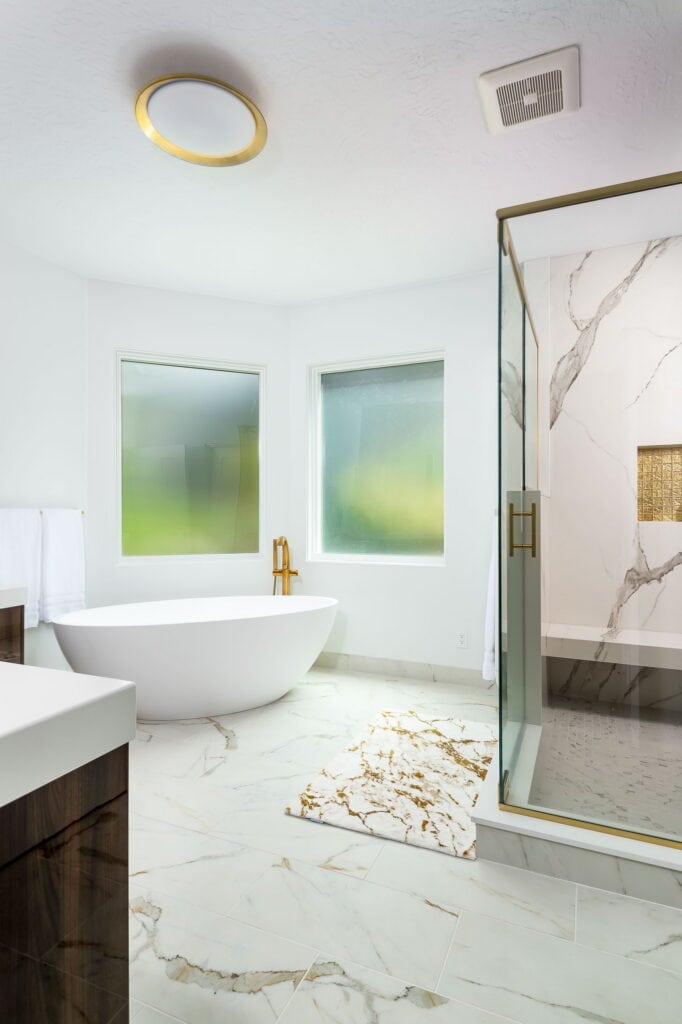

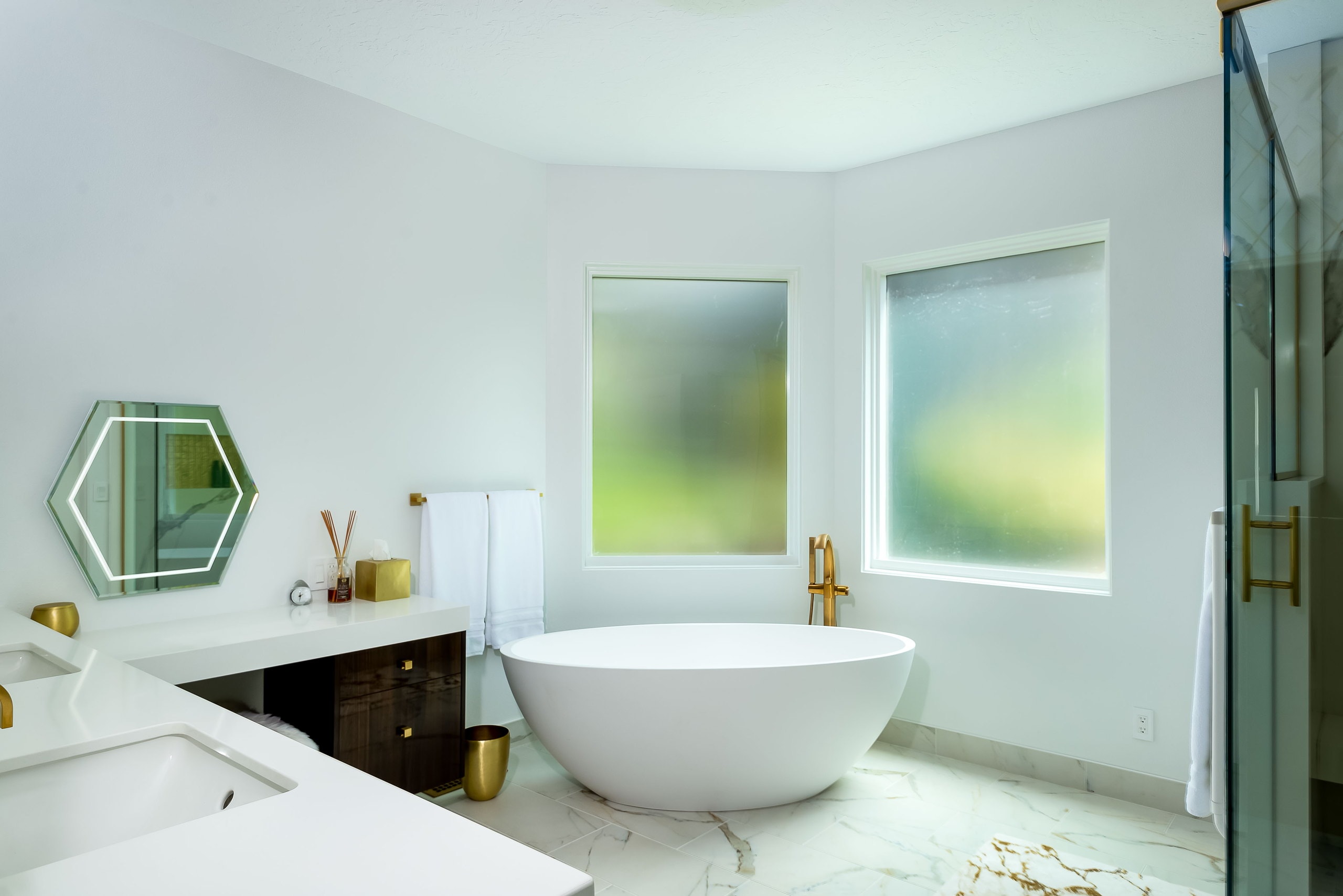

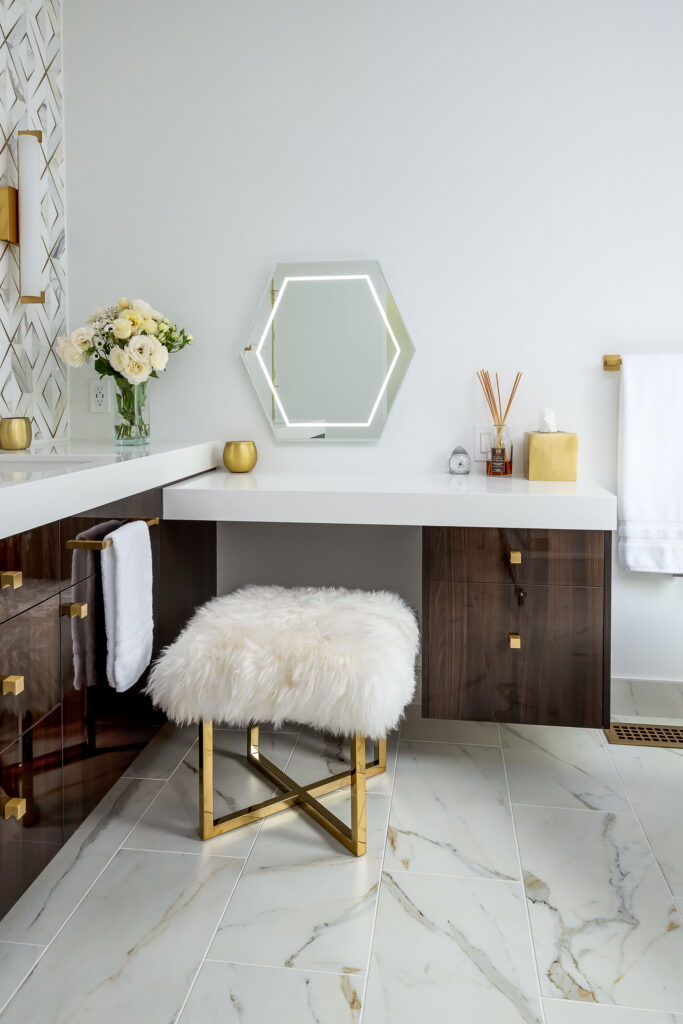

The floating makeup cabinet was secured by bolting steel angle to the concrete stem wall below the foundation line. Trim-free details carry through the room: a second layer of drywall and edge bead replaces traditional window casing, tile edge trim creates a trim-free door at the vanity wall, and a special narrow jamb achieves the same effect at the water closet. The freestanding vessel soaking tub, porcelain slab bench on a hidden metal frame, and book-matched porcelain corners with recessed storage niches deliver the polished, contemporary result.
- Installed a freestanding vessel soaking tub and porcelain slab bench on hidden steel frame
- Furred out exterior shower wall for proper insulation and storage niche
- Rerouted kitchen drain and coordinated laundry wall plumbing
- Created a floor-to-ceiling marble tile vanity wall with precisely aligned fixtures
- Selected gold and satin brass finishes with ultra-high-gloss polyester cabinetry
- Bolted floating makeup cabinet to concrete stem wall for structural support
- Designed trim-free windows and doors using drywall bead and narrow jamb details
The quality of the work is superior, the job site was kept very clean and organized. They responded immediately with solutions when problems came up.
Materials & Features
Every material was selected for longevity, beauty, and fit with the home — here is what was used and why.
-
01
Cabinets
DeWil's Fine Cabinetry — Frameless construction, slab door style, "Olmo" luxe finish
-
02
Cabinet hardware
Alno — Contemporary II 1" knobs and 12" pulls, Satin Brass
-
03
Countertop
Architectural Surfaces — 2 cm Super White quartz with 3" mitered edge, polished
-
04
Vanity faucets
California Faucets — Terra Mar wall-mounted in Lifetime Satin Gold
-
05
Backsplash
New Ravenna — Simone Mosaic with honed marble, brass and brushed bronze finish
-
06
Wall sconces
George Kovacs — 3-light Xenon sconce, Honey Gold
-
07
Medicine cabinets
Robern — PL Series 20" x 30" recessed mirrored with electrical power
-
08
Makeup Mirror
Crosswater London — Waldorf Collection hexagonal with LED
-
09
Shower walls
Pentaltek — Calacatta Elegante porcelain slab, polished finish
-
10

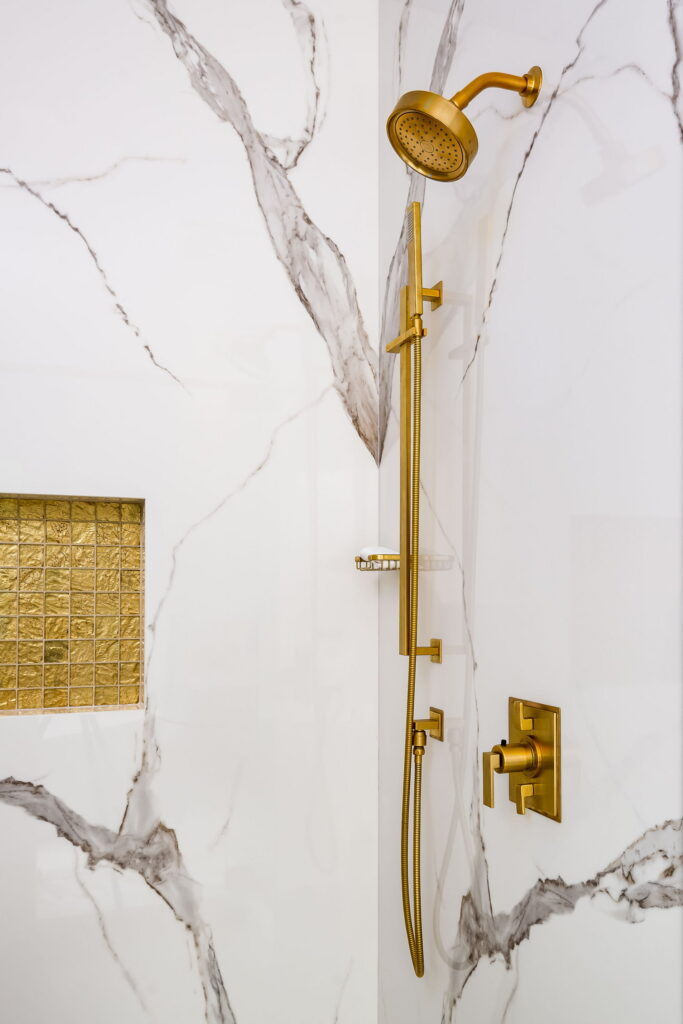

Shower niche accent tile
Susan Jablon — gold metallic glass mosaic
-
11
Shower floor
Architectural Surfaces — Marvel Calacatta Mosaic, matte finish
-
12
Bathroom floor
Bedrosians — Classic 2.0 Calacatta Oro porcelain, honed finish
-
13
Shower system

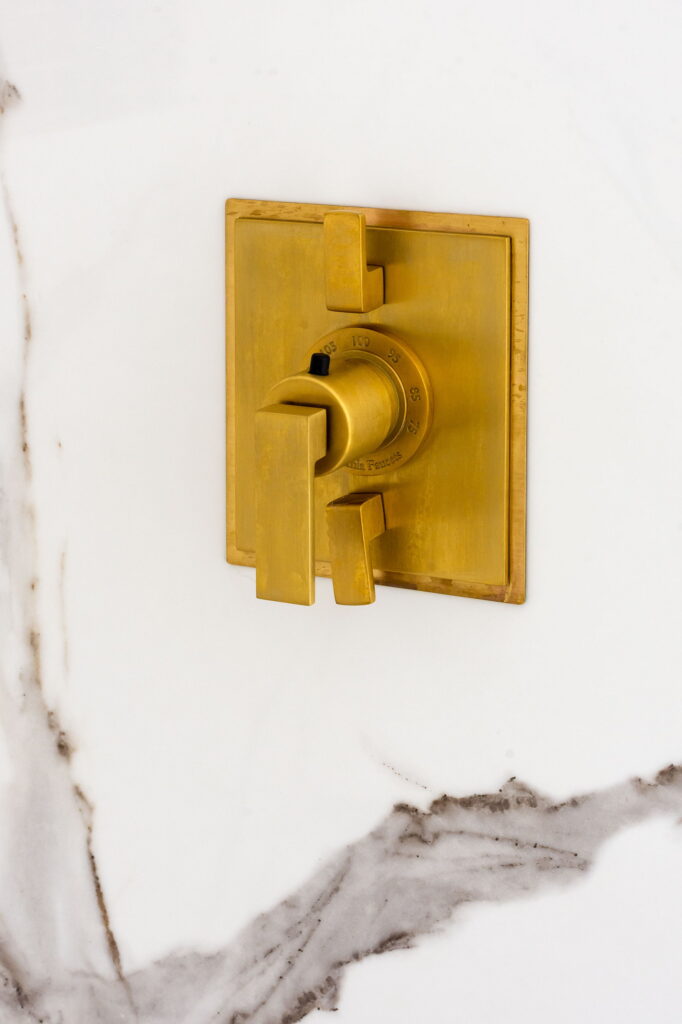

Kohler / California Faucets — Purist showerhead in Vibrant Moderne Brushed Gold, Multi-Series handshower in Lifetime Satin Gold, Styletherm thermostatic dual volume valve in Lifetime Satin Gold
-
14
Bathroom accessories
California Faucets — Morro Bay and Multi-Series selections in Lifetime Satin Gold
-
15
Freestanding tub
Badeloft — 22.4" H x 31.5" W x 66" L stone resin, matte white finish
-
16

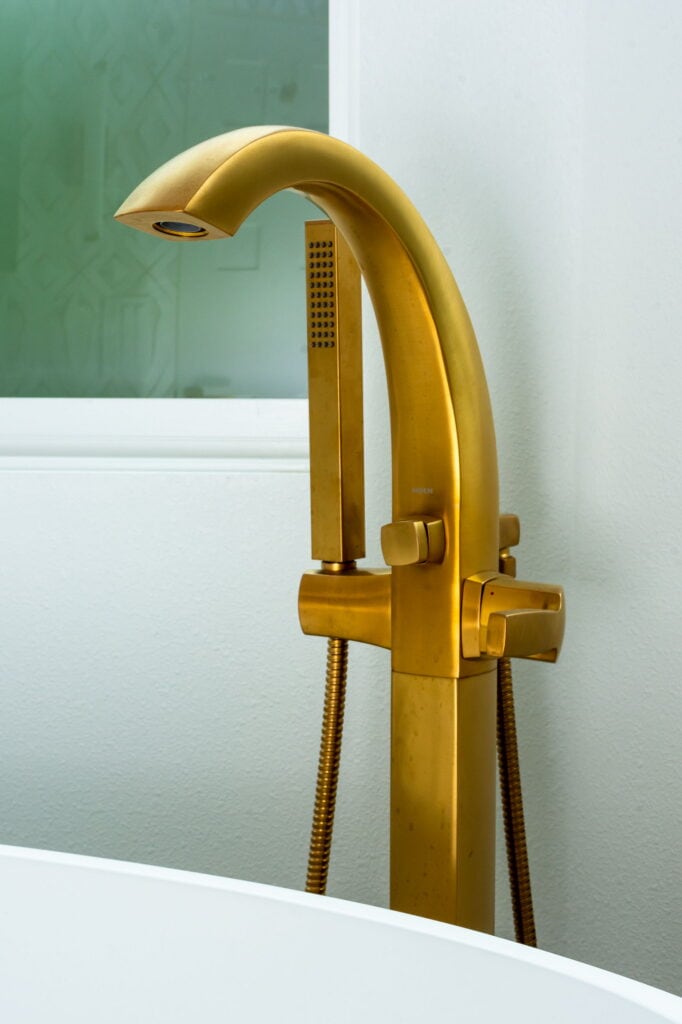

Tub filler
Moen — Voss Collection floor-mounted single-handle filler with handheld shower, Brushed Gold
